Mittavälineet - Syvyysmitat Analogiset syvyysmitat

Analogiset syvyysmitat

Analogiset syvyysmitat on valmistettu ruostumattomasta teräksestä. Mitta-asteikolla on satiinikromi-pinnoite.




Lisätietoja

1240-sarja, nonius 1/20

Tuotenumero                          Mittaussyvyys                         Vasteen pituus

1240-150                                    0-150 mm                                     100 mm

1240-200                                    0-200 mm                                     100 mm

1240-300                                    0-300 mm                                     100 mm

1240-500                                    0-500 mm                                     150 mm



1240-sarja, nonius 1/50

Tuotenumero                          Mittaussyvyys                              Vasteen pituus

1240-1501                                  0-150 mm                                     100 mm

1240-2001                                  0-200 mm                                     100 mm

1240-3001                                  0-300 mm                                     100 mm

1240-5001                                  0-500 mm                                     150 mm

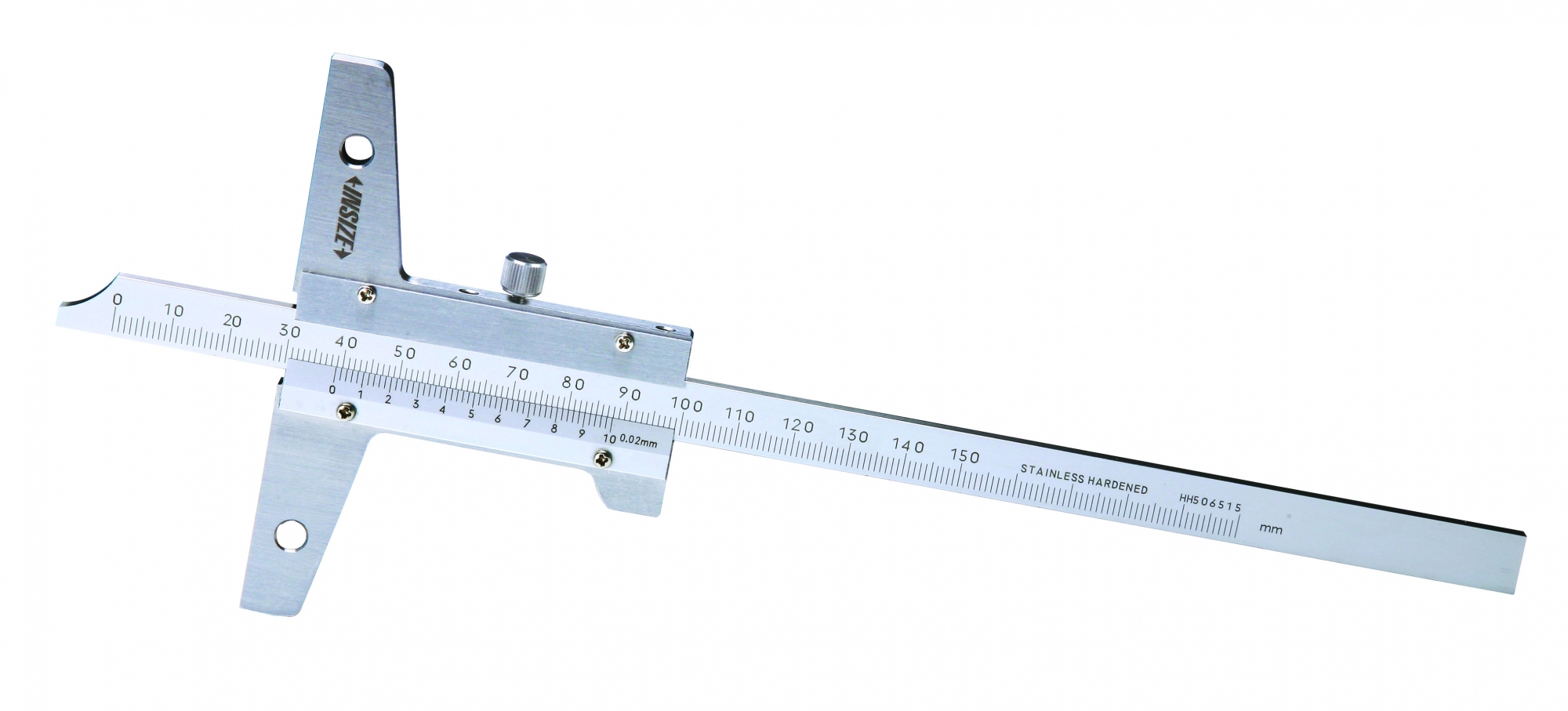

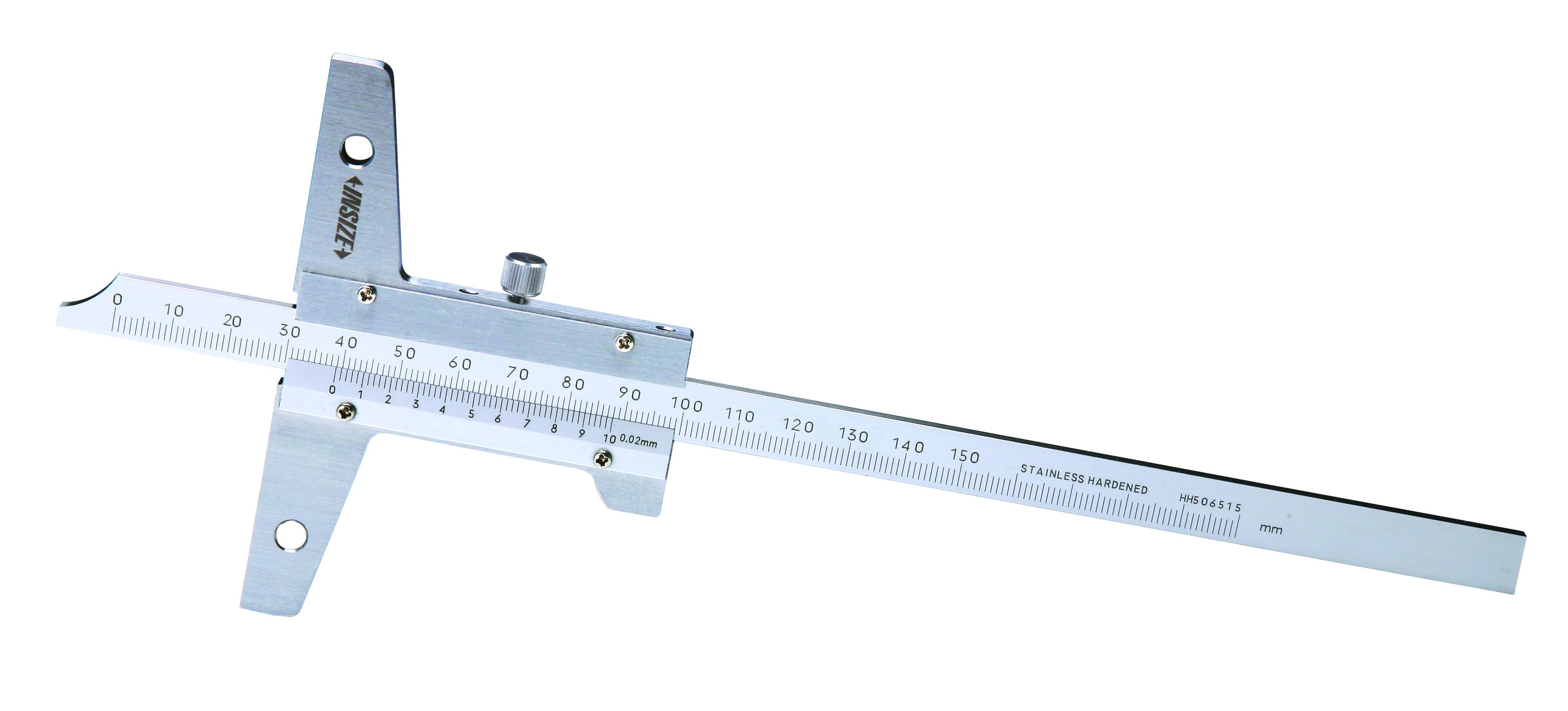

1247-sarja, nonius 1/20, jatkopalan asennusrei'illä

Tuotenumero                          Mittaussyvyys                         Vasteen pituus

1247-150                                    0-150 mm                                     100 mm

1247-200                                    0-200 mm                                     100 mm

1247-300                                    0-300 mm                                     100 mm

1247-600                                    0-600 mm                                     150 mm

1247-1000                                 0-1000 mm                                     200 mm



1247-sarja, nonius 1/50, jatkopalan asennusrei'illä

Tuotenumero                          Mittaussyvyys                              Vasteen pituus

1247-1501                                  0-150 mm                                     100 mm

1247-2001                                  0-200 mm                                     100 mm

1247-3001                                  0-300 mm                                     100 mm

1247-6001                                  0-600 mm                                     150 mm

1247-1001                                 0-1000 mm                                    200 mm

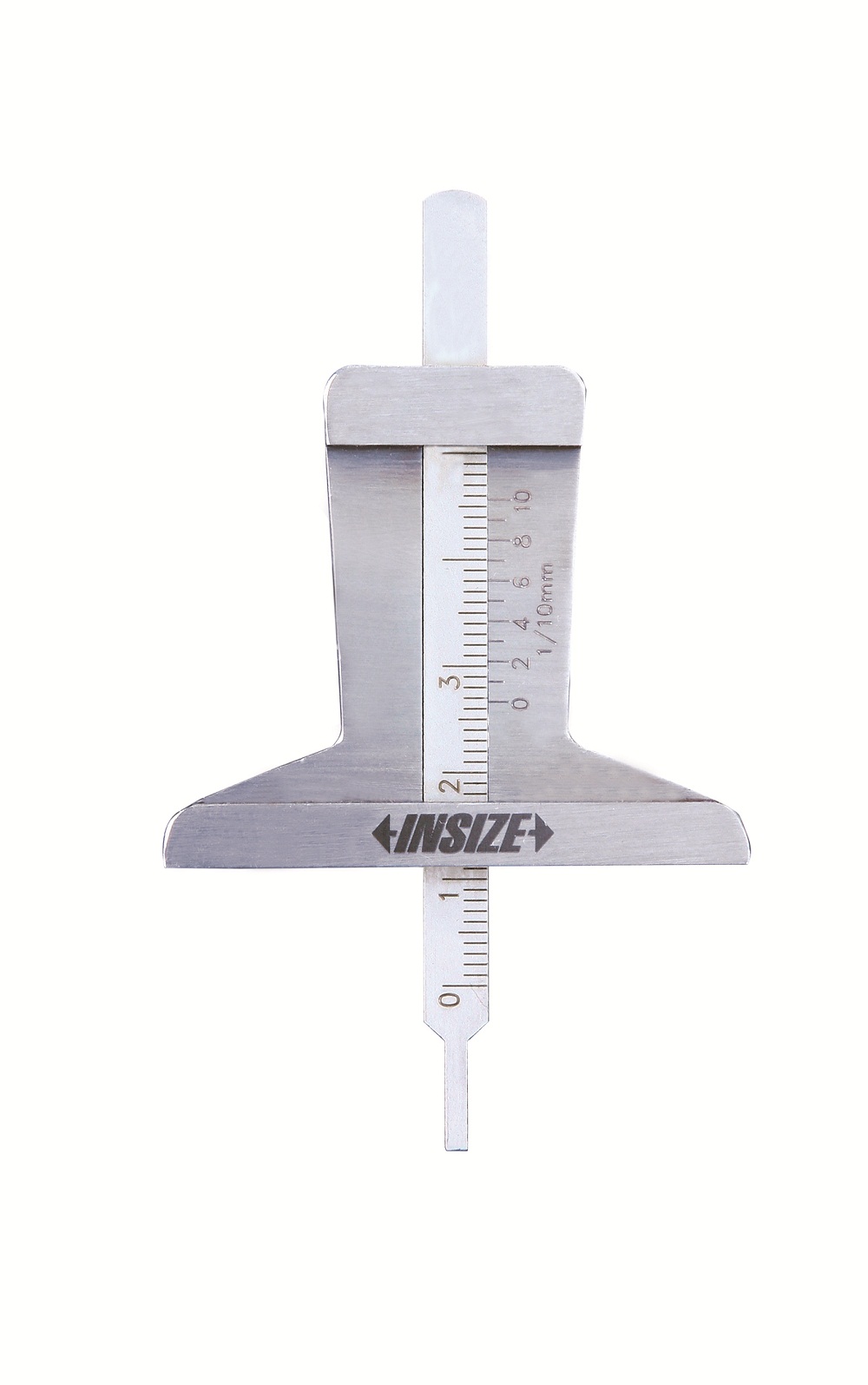

1244-minisyvyysmitta

Tuotenumero                          Mittaussyvyys                              Vasteen pituus

1244-30                                       0-30 mm                                          55 mm
